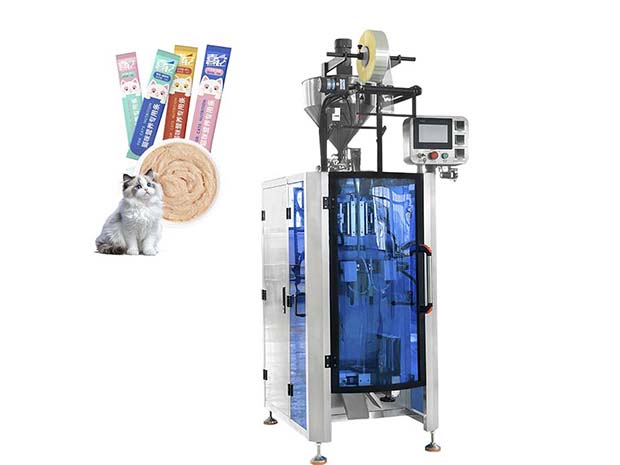

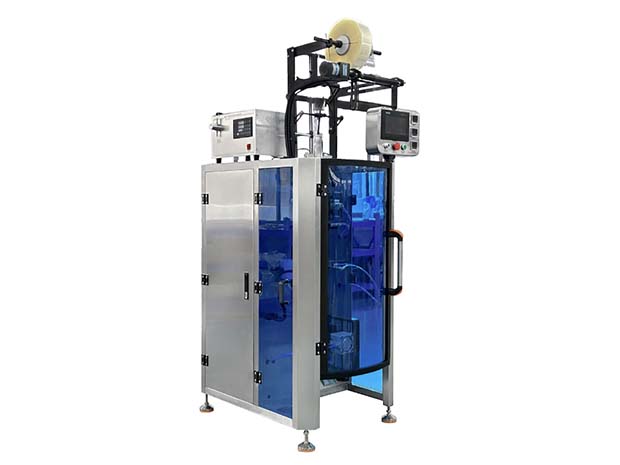

Wet Pet Food Sticks Packaging Machine

Model: YZ-120QY

Speed:30-60bags/min

Bag Size:(length):40-170mm ;(width):20-50mm

Packaging Material:PET/PE、BOPP/CPP、OPP/PE

Warranty Period:one year

Certification:CE,ISO and etc.

Application:suitable for fruit juice, wet pet food, honey, cosmetic, vegetable oil and etc.

Advantage:our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.

Technical characteristics

Application:

liquid/paste sticks packing machine suitable for fruit juice, wet pet food, honey, cosmetic, vegetable oil and etc.

liquid:paste

Features:

  1. Control system with display in English, Chinese and Russian, all 304 stainless steel box, just set the required parameters (bag length, etc.) in the displayable setup unit and the control system will automatically optimise the matching of each action to achieve the best packing speed.
    2. Dual source photoelectric detection system is stable and reliable, and the trademark of the packaging bag is complete.
    3. Intelligent temperature controller control. Automatically complete all the work of metering, bag making, filling, sealing, printing batch number, cutting and counting. Adopt the form of back sealing pillow bag sealing.
    4. According to user needs, one-word cutting can be realized by changing the tool. The pattern cutting is cut in a zigzag joint cutting, and the fillet corner cutting makes the knife stable and reliable when cutting the bag. It is easy to operate.



Performance Parameter
Model Number
YZ-120Q
Bag Length
40-170mm
Bag Width
20-40mm
Weighing Range
5—20ml
Outer film diameter
320mm
Packing material
opp/cpp/pe/pt
Bag type
Back side sealing
Packing speed
30-40bags/min
Machine size
1050*800*1920mm(L*W*H)
Machine weight
200KG
Power supply
220V,50/60HZ,2KW
