Model: YZ-320/420/520/720/820/1050
Speed：5-60bags/min
Max width of roll film：320-1050
Packaging Material：PET/PE、BOPP/CPP、OPP/PE
Warranty Period:One year
Certification:CE,ISO and etc.
Application:Suitable for Snacks, dried fruits, salt, sugar, frozen food, nut granules, whole grains, pet food, granular medicine, plant seeds, agrochemical, daily chemical products, nuts, red dates and wolfberry, fresh products, puffed food,hardware,plastics,etc.
Advantage:Our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.

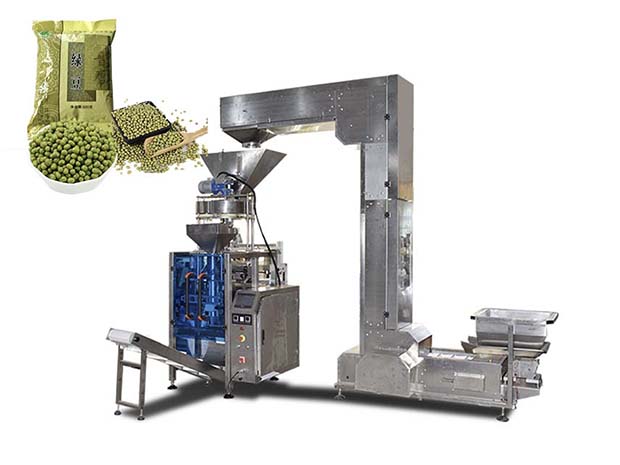

Volumetric cup weigher vffs machine is suitable for small granule and particle which do not require high accurate weight.Such as mung bean, rice and etc.
Date printer
Hole punch (Euro slot or round)
Gas flush
Tear notch
In-feed and take-away conveyors
Metal detectors
Label applicators
Checkweighers
| Model | YZL-420 | YZL-520 | YZL-720 | YZL-820 |
| Film width | 420mm | 520mm | 720mm | 820mm |
| Bag length | 80-320mm | 80-420mm | 100-350mm | 100-550mm |
| Bag width | 50-200mm | 50-250mm | 100-350mm | 180-400mm |
| Packaging film material | OPP/CPP/,OPP/PE,PET/PE | |||
| Packing speed | 5-60bag/min | 5-50bag/min | 5-40bag/min | 5-30bag/min |
| Filling Range | 150-1500ml | 150-2000ml | 500-3500ml | 6000ml(max) |
| Powder | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW | 220V 50/60Hz 3KW | 220V 50/60Hz 5KW |
| Machine size | 1388*1116*1536mm | 1440*1216*1796mm | 1500*1116*1536mm | 1780*1350*1950mm |
| (L*W*H) | ||||
| Machine dimension | 500kg | 550kg | 600kg | 900kg |
