Model: YZ-320/420/520/720/820/1050
Speed:5-60bags/min
Max width of roll film:320-1050
Packaging Material:PET/PE、BOPP/CPP、OPP/PE
Warranty Period:One year
Certification:CE,ISO and etc.
Application:Suitable for all kinds of ice ,such as edible ice, ice cube, tube ice, trash ice, granular ice, cylindrical ice ,tube ice ,ball ice and so on.
Advantage:Our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.
Application:

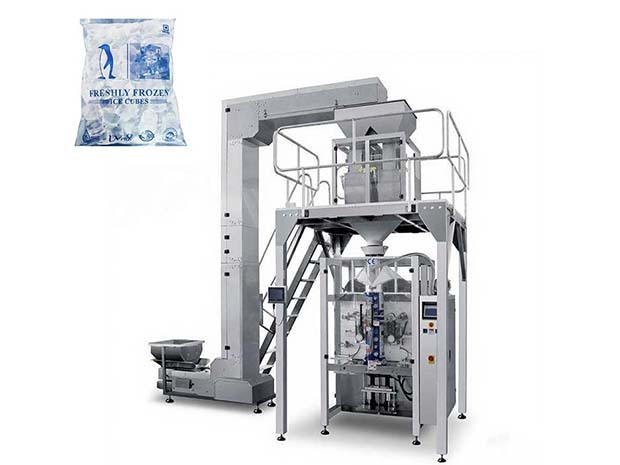

Ice packing machine is widely applied in all kinds of ice,such as edible ice, ice cube, tube ice, trash ice, granular ice, cylindrical ice ,tube ice ,ball ice and so on.

1. The outer sealing paper is controlled by stepping motor, with stable bag length and accurate positioning.
2. The temperature is controlled more accurately;
3.Adopt PLC to control the whole machine action, human-machine interfa ce display, easy to operate;rolled more accurately;
4. All the parts that can contact the material are made of SUS304 stainless steel, to ensure that the product is hygienic and reliable.

Options:
|
Model |
YZL-420 |
YZL-520 |
YZL-720 |
SKL-820 |
|
Film width |
420mm |
520mm |
720mm |
820mm |
|
Bag length |
80-320mm |
80-420mm |
100-350mm |
100-550mm |
|
Bag width |
50-200mm |
50-250mm |
100-350mm |
180-400mm |
|
Packaging film material |
OPP/CPP/,OPP/PE,PET/PE |
|||
|
Packing speed |
5-60bag/min |
5-50bag/min |
5-40bag/min |
5-30bag/min |
|
Filling Range |
150-1500ml |
150-2000ml |
500-3500ml |
6000ml (Max) |
|
Powder |
220V 50/60Hz 2.2KW |
220V 50/60Hz 2.5KW |
220V 50/60Hz 3KW |
220V 50/60Hz 5KW |
|
Machine size (L*W*H) |
1388*1116*1536mm |
1440*1216*1796mm |
1500*1116*1536mm |
1780*1350*1950mm |
|
Machine dimension |
500kg |
550kg |
600kg |
900kg |
