High Speed Ketchup Sachet Packaging Machine

Model:YZ-186

Bag Wide:35 – 100mm

Bag Length:60 – 160mm

Packing Speed:20 – 150bags/min

Bag Type:Three-side seal, four-side seal

Application:The machine is suitable for measurement packing of liquid, sauce and others.

Technical characteristics

Application:

This machine suitable for liquid fluid packaging such as tomato sauce, chili sauce and soy sauce

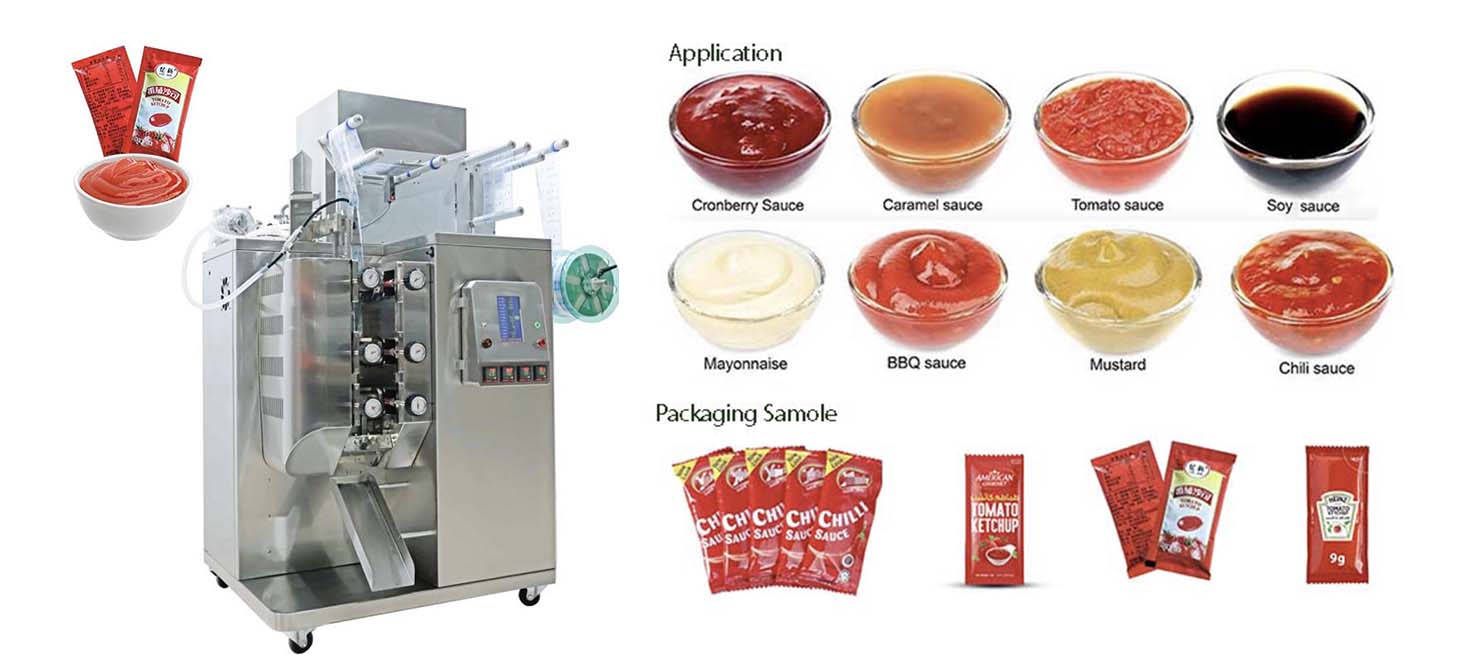

high speed ketchup packaging machine-4

Features:

  1. The machine is suitable for measurement packing of food,cosmetic,powder,liquid,sauce and others.

  2. All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the

    same  time,it can also according to the demand of customers printing batch number and other functions.

  3. The touch screen operation, PLC contro,servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

  4. Packing material:PET/AL/PE,PET/PE





Performance Parameter
Model YZ-186
Measuring Scope 5 - 60g
Bag size  (W):35 - 100mm (L):60 - 160mm
Packing Speed 20 - 150bags/min
Dimension ( L *  W  *  H ) 1425x992x1905mm
Weight 450kg
Toal power AC220V / 50HZ / 4KW
