Film width：500/700/980mm(Customizable)
Packaging Speed:25-40Bags/Lane/Min
Sealing Type:4 Side Seal
Measuring:1.Volumetric cup 2.weigher
Warranty Period:One year

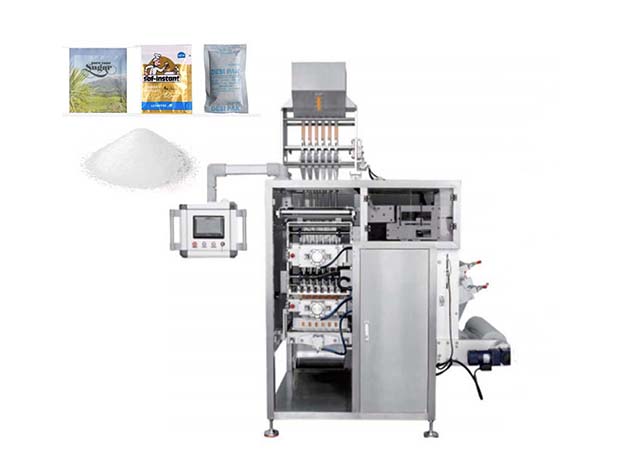

Multi-lane Back Sealing Granule Packing Machine is suitable for packaging various granular materials:such as sugar,salt, seasonings,coffee,desiccant,etc.
·Made of food-grade 304 stainless steel and complies with GMP production standards.
·Equipped with film offset correction system to ensure the stability of bag making. ·Servo motor pulls the film to make the bag sealing more stable and the finished bag more beautiful.
·Touch screen operation,default in both Chinese and English,language can be customized.
·Major brands electrical components,PLC control,high intelligence,fast speed,high efficiency. ·Automatic film breakage recognition system,automatic alarm and shutdown,and roll flm alignment and docking device
Packing material：BOPP/Polyethylene,Aluminium/Polyethylene,Paper/Polyethylene,Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on
| Model | YZ-500K | YZ-700K | YZ-980K |
| Lanes | 2-4 Lanes | 3-10 Lanes | 4-16 Lanes |
| Bag width | 50-125mm | 50-125mm | 50-125mm |
| Film width | Max:500mm | Max:700mm | Max:980mm |
| Sealing Type | 4sides sealing | ||
| Packing speed | 25-40Bags/Lane/Min | ||
| Measuring | 1.Volumetric cup 2.weigher | ||
| Cuting Type | Straight cutting/Zig zag cutting/Continuous Cutting | ||
| Bag length | 45mm-160mm | ||
| Power Supply | 50HZ/220V/2.8kw | 50HZ/220V/4.1kw | 50HZ/220V/5.5kw |
| Dimension(mm) | 1617*1400*2540 | 1786*1670*2620 | 1956*1950*3150 |
| Weight | about 900kg | about 1100kg | about 1200kg |
