Filling range:10-3500g
Warranty Period:One year
Certification:CE,ISO and etc.
No.of working station: Eight working station
Packing speed:20-60bags/min (depends on the product weight)

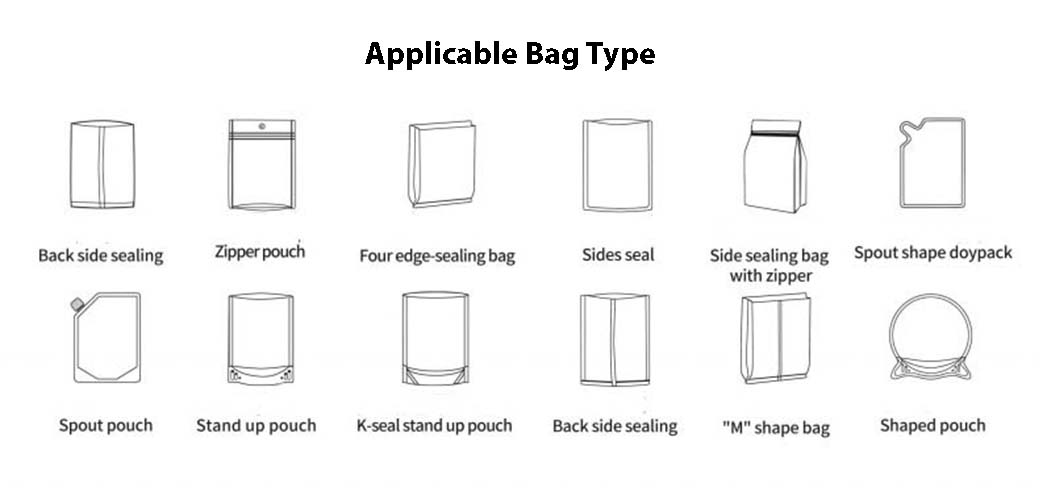

Bag type:Gusseted bag, four sides sealing bag, fin seal bag, zip-lock bag, spout pouch bag, etc
Application:Suitable for flour，milk flour，laundry detergent，coffee powder，chocolate powder，seasoning powder，chemical powder，cement powder，matcha powder and etc.

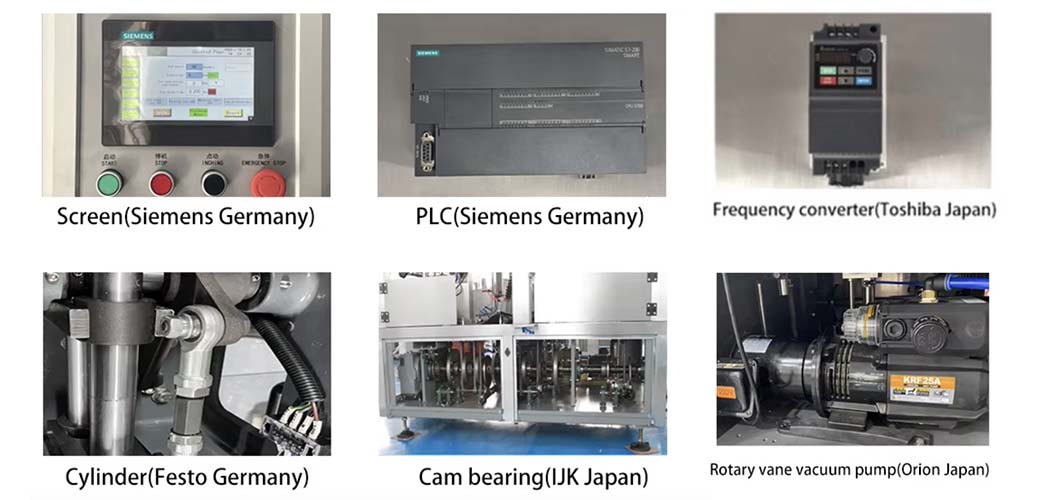

Advantage:Our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.
1.Easy to operate, using Germany Siemens PLC control, with touch screenhuman-machine interface control system, easy to operate
2.Frequency conversion speed control, this machine uses frequency conversion speedcontrol device, the speed can be adjusted at will within the specifed range.
3.Automatic detection function, if the bag is not opened or opened incomplete, no mate-rial is added, no heat sealing, the bag can be used again, no waste of materials, saving productioncost for users.
4.Adjusting bag width adopts motor control. press and hold the control button toadiust the width of the machine clip, easy to operate and save time.

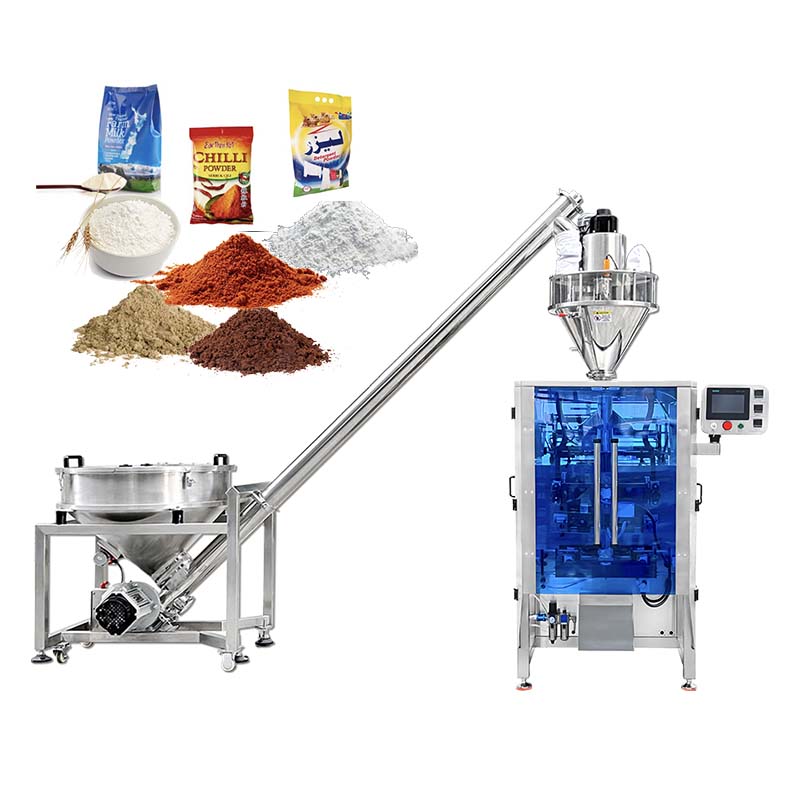

This powder packaging machine is suitable for flour，milk flour，laundry detergent，coffee powder，chocolate powder，seasoning powder，chemical powder，cement powder，matcha powder and etc.
| Model | YZGD-200R | YZGD-300R |
| No.of working station | Eight working station | |
| Bag type | Gusseted baq,four sides sealing baq,fin seal bag, zip-lock bag, spout pouch bag, etc | |
| Bag size | Bag width:80~200mm Bag length：80~200mm | Bag width：80~300mm Bag length：100~400mm |
| Packing speed | 20-60 bags/min (depends on the product weight) | 20-45 bags/min (depends on the product weight) |
| Filling range | 10~2500g | 10~3500g |
| Noise dB | ≤70分贝 | |
| Sealing type | Straight+Mesh | |
| Machine weight | 1400KG | 1800KG |
| Power | 380V 3P 50/60HZ3.5KW | 380V 3P 50/60HZ 5.5KW |
| Air consume | ≥0.6m3/min(customer provide） | |
| Machine measure | (L)2170mm(W)1540mm(H)1430mm | (L)2460mm(W)1870mm(H)1460mm |
| Machine frame | Exposed. all material contact parts made of 304 stainless steel:Transmission and support frames are steel | |
