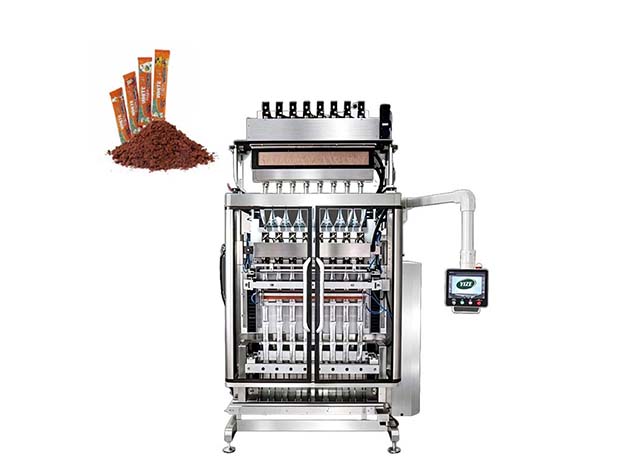

Multi-lane Back Sealing Powder Packing Machine

  Film width:300-900mm(Customizable)

 Sealing Type:Back Seal

Measuring:long screw/short screw/short screw with cup

Warranty Period:One year

Application:The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.

Technical characteristics

Application:

powder packaging machine is designed for filling and packaging various powder items(like coffee powder, spice powder, laundry powder, and dye powder).

  • Food industry:Flour, chili powder, coffee powder, tea powder, spice powder, milk powder, cocoa powder, nutritional powder, vanilla powder, brown sugar powder, masala powder, curry powder, ginger powder, starch, jaggery powder, etc.
  • Pharmaceutical and health care products industry:Pharmaceutical powder, herbal powder, etc.
  • Chemical industry:Detergent powder, feed powder, chemical powder, dye powder, etc.
  • Other industries:Feed powder,etc.



Features:

·Made of food-grade 304 stainless steel and complies with GMP production standards.

·Equipped with film offset correction system to ensure the stability of bag making.

·Servo motor pulls the film to make the bag sealing more stable and the finished bag more beautiful. ·Touch screen operation,default in both Chinese and English,language can be customized.

·Major brands electrical components,PLC control,high intelligence,fast speed,high efficiency.

·Automatic film breakage recognition system,automatic alarm and shutdown,and roll flm alignment and docking device

Packing material:BOPP/Polyethylene,Aluminium/Polyethylene,Paper/Polyethylene,Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on













    Performance Parameter
        Model YZ-300BF YZ-600BF YZ-900BF
        Lanes 2-4 Lanes 3-10 Lanes 4-16 Lanes
      Bag width 20-70mm 20-95mm 20-105mm
       Film width Max:300mm Max:600mm Max:900mm
      Sealing Type Back seal
     Packing speed 20-40Bags/Lane/Min
      Measuring long screw/short screw/short screw with cup
      Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut
     Bag length 50mm-180mm
      Power Supply 50HZ/220V/3.5kw 50HZ/220V/5.5kw 50HZ/220V/7.5kw
    Dimension(mm) 1900*1440*3130 1860*1750*3200 1860*2050*3300
      Weight about 900kg about 1200kg about 1500kg
