Model:Up film pillow packaging machine
Packing speed：30-300bags/min
Film width:Max.250mm
Warranty Period:one year
Certification:CE,ISO and etc.
Application:suitable for bread packaging, egg yolk pie, pastry, sandwich bread, toast bread, and other bread and pastry food packaging.
Advantage:our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.

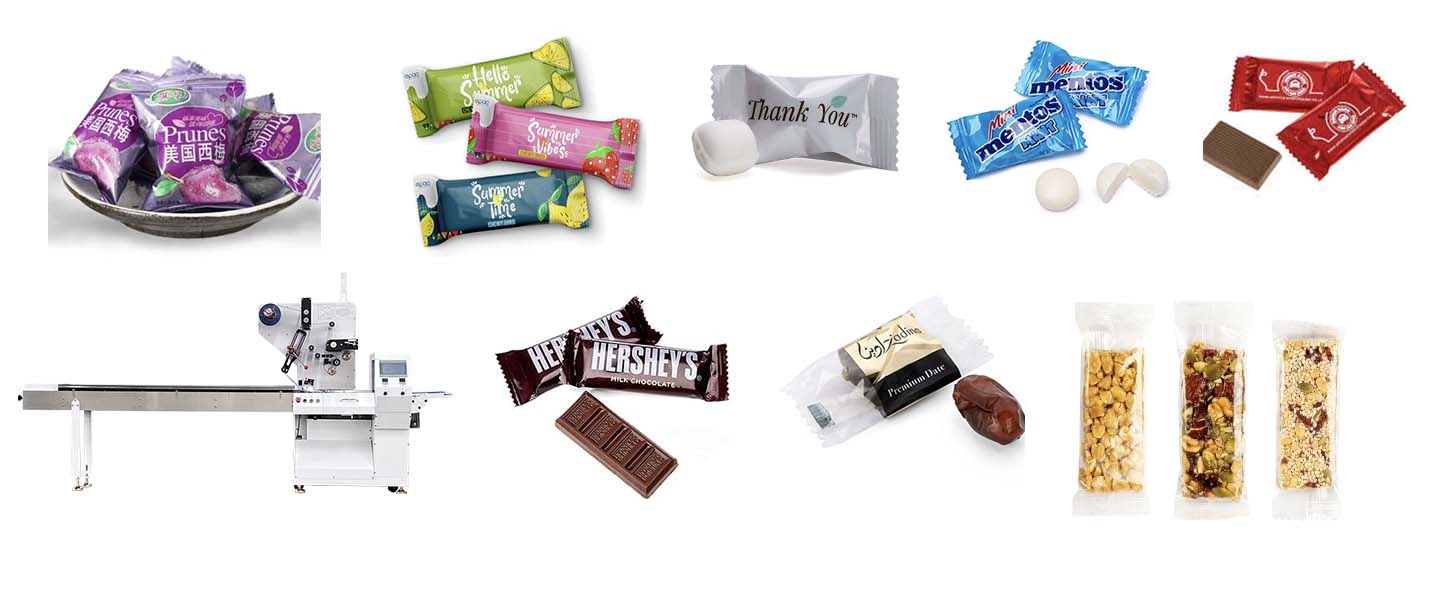

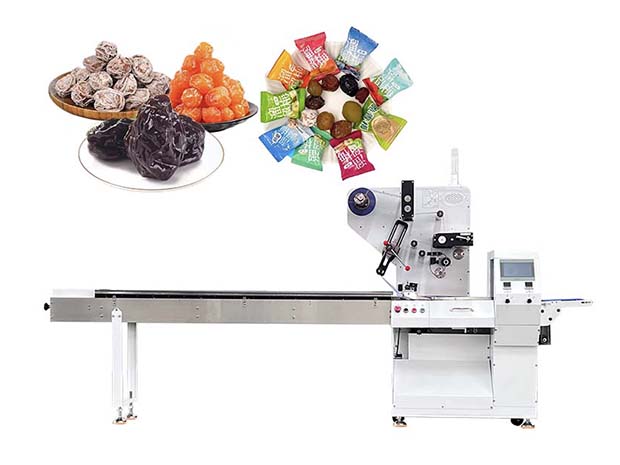

Dried Plum Packaging Machine is widely used in dried plum ,candy, cereal bars, chocolate and so on.
1.The company has an original film roll brake mechanism, which makes the film run more stable and eliminates the influence ofthe change inthe outerdiameter ofthe film roll.
2. Equipped with 8 film-wrapping drums,the film run is more stable, and the cantilever drum structureis more convenientforfilm change.
3. The film-pulling drum is equipped with a cone wheel speed regulation mechanism, which can achieve the samespeed before and after the film.
4. New appearance design, the frame is welded with steel plate, which is stable and solid. There is a luminous LOGO design, which can be replaced according to customer needs
1. Date coder
2.Automatic punching Device
3. Full Stainless and notch
4.Touch Screen
5.Air filling device
6.Release the exhaust device
7.No empty bag function
8.Customized sealing patterns
9.Automatic feeder
10.Automatic collection device
| Model | Parameters |
| Film width | Max.250mm |
| Packaging rate | 30-300bags/min |
| Bag length | 65mm-longer |
| Bag width | 25-110mm |
| Product height | Max.50mm |
| Power | 220V 50/60HZ 3.75KW (two knives) |
| Machine weight | 400kg |
| Machine size | (L)3400x(W)840x(H)1520mm |
