Model: YZ-120QY
Speed：30-60bags/min
Bag Size：(length):40-170mm ;(width):20-50mm
Packaging Material：PET/PE、BOPP/CPP、OPP/PE
Warranty Period:one year
Certification:CE,ISO and etc.

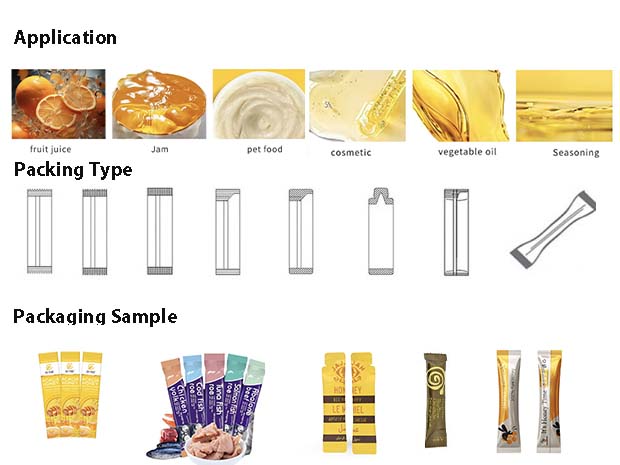

Application:suitable for fruit juice, wet pet food, honey, cosmetic, vegetable oil and etc.
Advantage:our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.

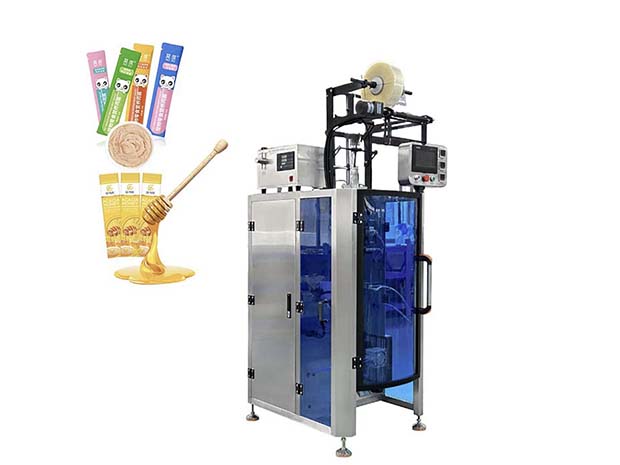

liquid/paste sticks packing machine suitable for fruit juice, wet pet food, honey, cosmetic, vegetable oil and etc.
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
1.Control system with display in English, Chinese and Russian, all 304 stainless steel box, just set the required parameters (bag length, etc.) in the displayable setup unit and the control system will automatically optimise the matching of each action to achieve the best packing speed.
2. Dual source photoelectric detection system is stable and reliable, and the trademark of the packaging bag is complete.
3. Intelligent temperature controller control. Automatically complete all the work of metering, bag making, filling, sealing, printing batch number, cutting and counting. Adopt the form of back sealing pillow bag sealing.
4. According to user needs, one-word cutting can be realized by changing the tool. The pattern cutting is cut in a zigzag joint cutting, and the fillet corner cutting makes the knife stable and reliable when cutting the bag. It is easy to operate.
|
Model Number
|
YZ-120QY
|
|
speed
|
30-60bags/min
|
|
Bag Size
|
(length):40-170mm ;(width):20-50mm |
|
Weighing Range
|
5—20ml
|
|
Outer film diameter
|
320mm
|
|
Packing material
|
opp/cpp/pe/pt
|
|
Bag type
|
Back side sealing
|
|
Applicable film thickness
|
0.08mm-0.12mm
|
|
Machine size
|
1050*800*1920mm(L*W*H)
|
|
Machine weight
|
200KG
|
|
Power supply
|
220V,50/60HZ,2KW
|
