Model: YZ-320/420/520/720/820/1050
Speed：5-60bags/min
Max width of roll film：320-1050
Packaging Material：PET/PE、BOPP/CPP、OPP/PE
Warranty Period:One year
Certification:CE,ISO and etc.
Application:Suitable for Snacks, dried fruits, salt, sugar, frozen food, nut granules, whole grains, pet food, granular medicine, plant seeds, agrochemical, daily chemical products, nuts, red dates and wolfberry, fresh products, puffed food,hardware,plastics,etc.

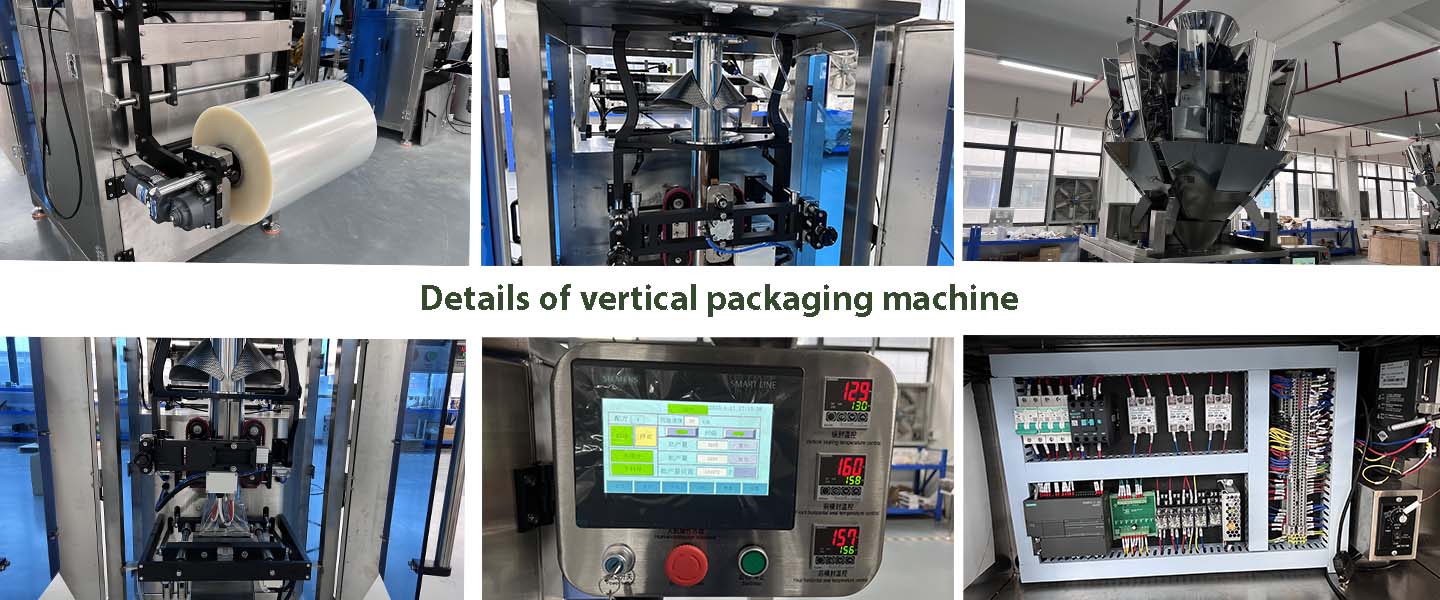

Advantage:Our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.

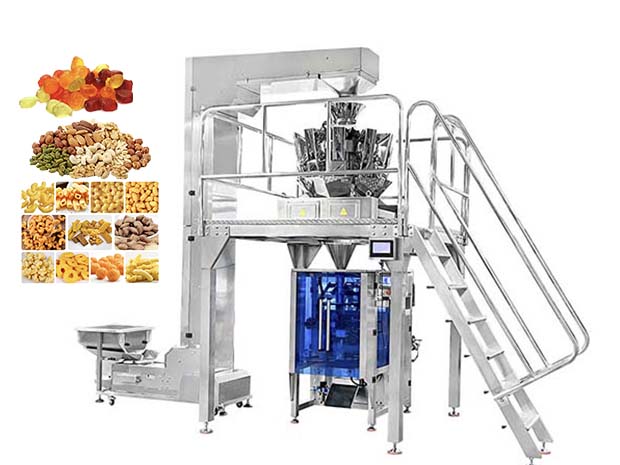

Vertical granule packaging machine suitable for Snacks, dried fruits, salt, sugar, frozen food, nut granules, whole grains, pet food, granular medicine, plant seeds, agrochemical, daily chemical products, nuts, red dates and wolfberry, fresh products, puffed food,hardware,plastics,etc.

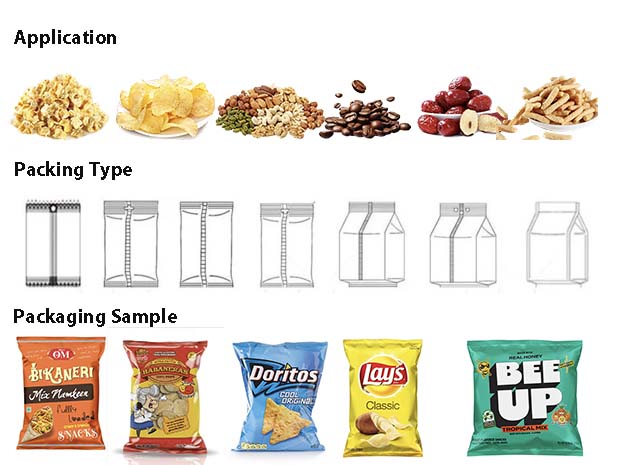

like pillow bag, gusset bag, quad seal stand up bag, flat bottom stand up bag, brick shape bag, etc.
|
Model |
YZL-420 |
YZL-520 |
YZL-720 |
YZL-820 |
|
Film width |
420mm |
520mm |
720mm |
820mm |
|
Bag length |
80-320mm |
80-420mm |
100-350mm |
100-550mm |
|
Bag width |
50-200mm |
50-250mm |
100-350mm |
180-400mm |
|
Packaging film material |
OPP/CPP/,OPP/PE,PET/PE |
|||
|
Packing speed |
5-60bag/min |
5-50bag/min |
5-40bag/min |
5-30bag/min |
|
Filling Range |
150-1500ml |
150-2000ml |
500-3500ml |
6000ml (Max) |
|
Powder |
220V 50/60Hz 2.2KW |
220V 50/60Hz 2.5KW |
220V 50/60Hz 3KW |
220V 50/60Hz 5KW |
|
Machine size (L*W*H) |
1388*1116*1536mm |
1440*1216*1796mm |
1500*1116*1536mm |
1780*1350*1950mm |
|
Machine dimension |
500kg |
550kg |
600kg |
900kg |
