Warranty Period:One year
Certification:CE,ISO and etc.
Advantage:Our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.
1.Easy to operate, using Germany Siemens PLC control, with touch screenhuman-machine interface control system, easy to operate
2.Frequency conversion speed control, this machine uses frequency conversion speedcontrol device, the speed can be adjusted at will within the specifed range.
3.Automatic detection function, if the bag is not opened or opened incomplete, no mate-rial is added, no heat sealing, the bag can be used again, no waste of materials, saving productioncost for users.
4.Adjusting bag width adopts motor control. press and hold the control button toadiust the width of the machine clip, easy to operate and save time.
| Packing speed | 45-60 bags/min |
| Additional equipment can be added | Coding/exhust/zipper |
| Bag length | 55-200mm |
| Bag width | 100-400mm |
| Package weight | 1-1000g |
| Bag shape | Stand up pouch/Four-side-seal bag /zipper bag/ tote bag/tote bag/ paper bag and other premade bags |
| Device size | (L)2480*(W)1600*(H)1483mm |
| Power supply specifications | 380V/50HZ/9.8KW |

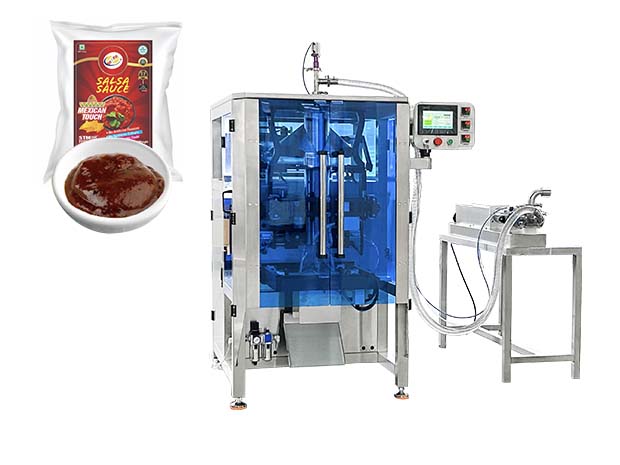

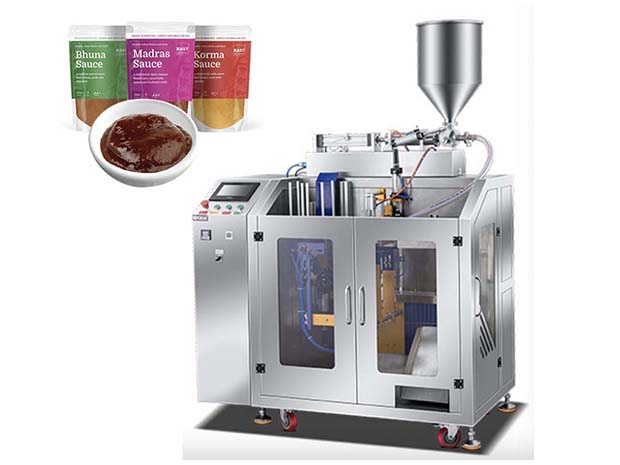

case 4:sauce vertical packaging machine
|
Model |
YZL-420 |
YZL-520 |
YZL-720 |
YZL-820 |
|
Film width |
420mm |
520mm |
720mm |
820mm |
|
Bag length |
80-320mm |
80-420mm |
100-350mm |
100-550mm |
|
Bag width |
50-200mm |
50-250mm |
100-350mm |
180-400mm |
|
Packaging film material |
OPP/CPP/,OPP/PE,PET/PE |
|||
|
Packing speed |
5-60bag/min |
5-50bag/min |
5-40bag/min |
5-30bag/min |
|
Filling Range |
150-1500ml |
150-2000ml |
500-3500ml |
6000ml (Max) |
|
Powder |
220V 50/60Hz 2.2KW |
220V 50/60Hz 2.5KW |
220V 50/60Hz 3KW |
220V 50/60Hz 5KW |
|
Machine size (L*W*H) |
1388*1116*1536mm |
1440*1216*1796mm |
1500*1116*1536mm |
1780*1350*1950mm |
|
Machine dimension |
500kg |
550kg |
600kg |
900kg |
