Warranty Period:one year
Certification:CE,ISO and etc.
Advantage:our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation
Application:

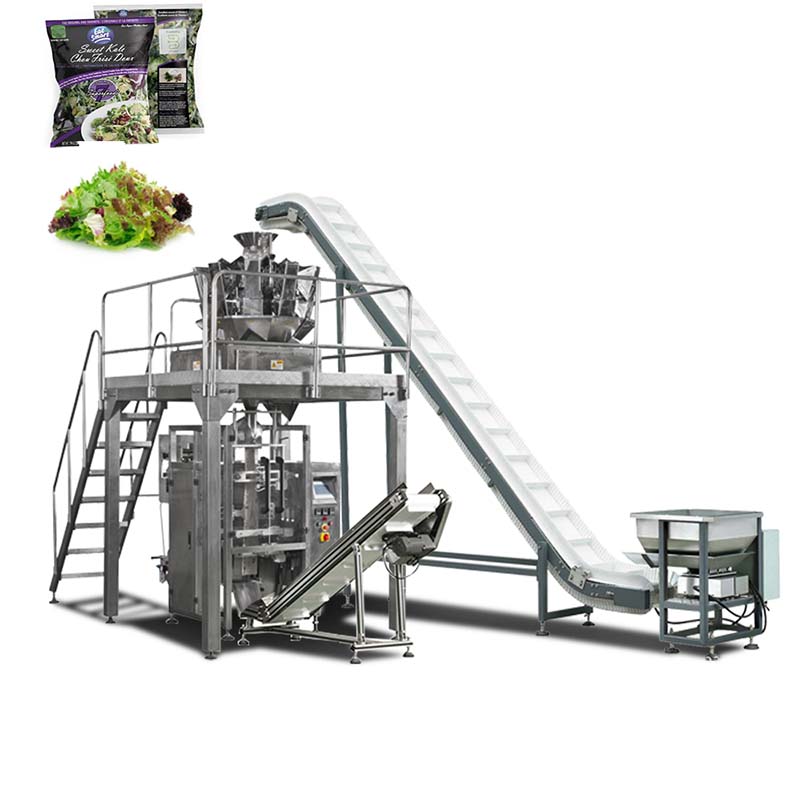

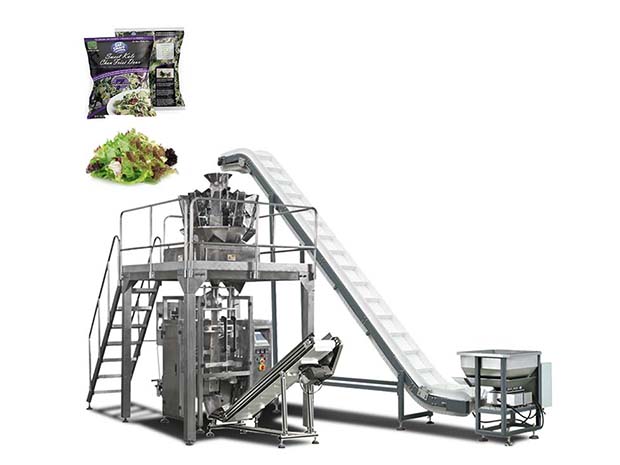

Vegetable salad packing machine is widely applied in all kinds of vegetable salad.
Options：
|
Model |
YZL-420 |
YZL-520 |
YZL-720 |
YZL-820 |
|
Film width |
420mm |
520mm |
720mm |
820mm |
|
Bag length |
80-320mm |
80-420mm |
100-350mm |
100-550mm |
|
Bag width |
50-200mm |
50-250mm |
100-350mm |
180-400mm |
|
Packaging film material |
OPP/CPP/,OPP/PE,PET/PE |
|||
|
Packing speed |
5-60bag/min |
5-50bag/min |
5-40bag/min |
5-30bag/min |
|
Filling Range |
150-1500ml |
150-2000ml |
500-3500ml |
6000ml (Max) |
|
Powder |
220V 50/60Hz 2.2KW |
220V 50/60Hz 2.5KW |
220V 50/60Hz 3KW |
220V 50/60Hz 5KW |
|
Machine size (L*W*H) |
1388*1116*1536mm |
1440*1216*1796mm |
1500*1116*1536mm |
1780*1350*1950mm |
|
Machine dimension |
500kg |
550kg |
600kg |
900kg |
1.Easy to operate, using Germany Siemens PLC control, with touch screenhuman-machine interface control system, easy to operate
2.Frequency conversion speed control, this machine uses frequency conversion speedcontrol device, the speed can be adjusted at will within the specifed range.
3.Automatic detection function, if the bag is not opened or opened incomplete, no mate-rial is added, no heat sealing, the bag can be used again, no waste of materials, saving productioncost for users.
4.Adjusting bag width adopts motor control. press and hold the control button toadiust the width of the machine clip, easy to operate and save time.

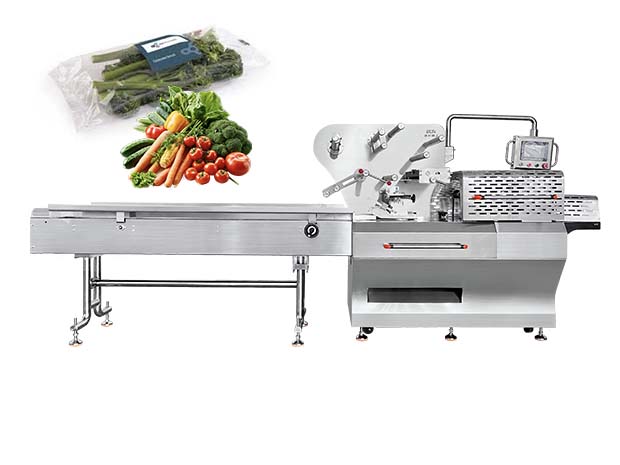

| Horizontal Packing Machine Upper Film Rolling | |||
| Model | YZ-HS35 | YZ-HS45 | YZ-HS60 |
| Film width | Max350mm | Max450mm | Max600mm |
| Packaging rate | 40-60bags/min | 30-60bags/min | 20-60bags/min |
| Bag length | 65mm-longer | 65mm-longer | 65mm-longer |
| Bag width | 50-160mm | 50-210mm | 100-280mm |
| Product height | Max60mm | Max80mm | Max80mm |
| Power voltage | 220V 50/60HZ 4.15KW | 220V 50/60HZ 4.15KW | 220V 50/60HZ 4.15KW |
| Machine weight | 580kg | 650kg | 680kg |
| Machine size | (L)4020*(W)770*(H)1450mm | (L)4020*(W)770*(H)1450mm | (L)4020*(W)920*(H)1460mm |
