Ketchup Packaging solution

Warranty Period:One year

Certification:CE,ISO and etc.

Application:This machine suitable for liquid fluid packaging such as tomato sauce, chili sauce and soy sauce

Advantage:Our machine uses Panasonic, Siemens, Schneider, Omron and other core components to ensure quality and stable operation.

Get Inquiry Chat Now

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

case 1:ketchup sachet packaging machine

Application:

This machine suitable for liquid fluid packaging such as tomato sauce, chili sauce and soy sauce

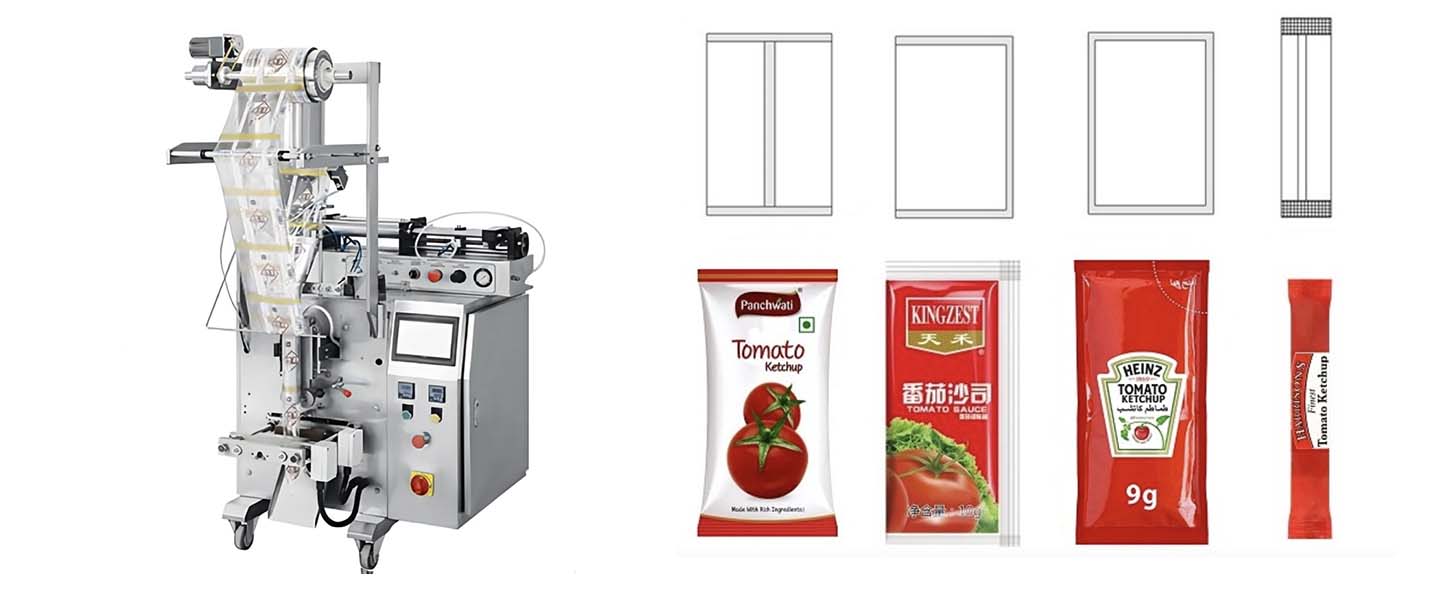

ketchup sachet packaging machine

Features:

  1. The complete machine structure is compact, firm, reasonable design and simple.
  2. Adopt photoeye control system, step motor film, reliable, stable performance and low noise.
  3. Adopt frequency conversion and speed adjustment, with more stable operation, lower noise, and low failure rate.
  4. Fully automatic from measurement, filling bag, date printed to the product output at one time.
  5. Borrowing the principle of spring press knife, pneumatic split cut, the fifth consecutive package is more stable.
    Model YZ-160
    Thin film width Max.320mm
    Bag wide Max.150mm
    Bag length 30-200mm
    Measurement range 20-100/100-300/300-500ml
    Packing speed 10-70bag/min
    Maximum coil outer diameter 300mm
     film thickness 0.04-0.08mm
    Packaging film material Composite plastic film (like: OPP/CPP.OPP/CE.MST/PE/)
    power 220V,50/60HZ
     machine weight 286KG
    Machine size L1100×W755×H1730mm



Performance Parameter

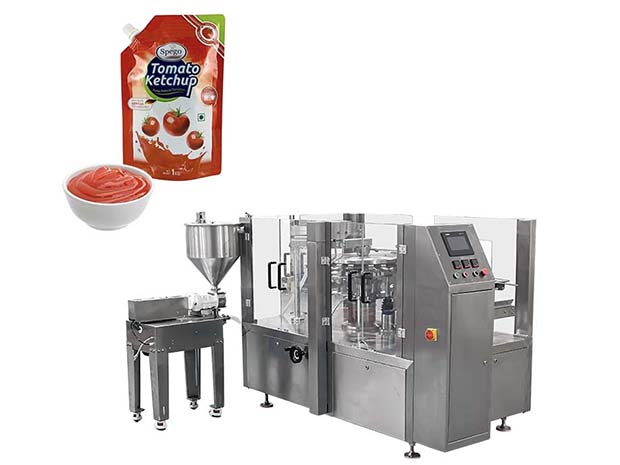

case 2:ketchup doypack packaging machine

Features

1.Easy to operate, using Germany Siemens PLC control, with touch screen human-machine interface control system, easy to operate

2.Frequency conversion speed control, this machine uses frequency conversion speed control device, the speed can be adjusted at will within the specifed range.

3.Automatic detection function, if the bag is not opened or opened incomplete, no mate-rial is added, no heat sealing, the bag can be used again, no waste of materials, saving productioncost for users.

4.Adjusting bag width adopts motor control. press and hold the control button toadiust the width of the machine clip, easy to operate and save time.

working progress

Model  YZGD-200R YZGD-300R
No.of working station Eight working station
Bag type Gusseted bag ,four sides sealing bag ,fin seal bag, zip-lock bag, spout pouch bag, etc
Bag size Bag width:80~200mm Bag length：80~200mm  Bag width：80~300mm Bag length：100~400mm
Packing speed 20-60 bags/min (depends on the product weight) 20-45 bags/min (depends on the product weight)
Filling range 10~2500g  10~3500g
Noise dB  ≤70分贝
Sealing type Straight+Mesh
Machine weight 1400KG 1800KG
Power 380V 3P 50/60HZ3.5KW 380V 3P 50/60HZ 5.5KW
Air consume ≥0.6m3/min(customer provide）
Machine measure (L)2170mm(W)1540mm(H)1430mm (L)2460mm(W)1870mm(H)1460mm
Machine frame Exposed. all material contact parts made of 304 stainless steel:Transmission and support frames are steel
